Thermal sensor is used in various applications and plays a very important role in electronics to maintain stable operation by monitoring temperature, detecting abnormal temperature, etc. KEMET offers thermal sensor TRS series and OHD series. KEMET thermal sensor is based on thermo ferrite and reed switch using KEMET original Thermolite® material, and it can be used as low cost thermal switch solution. In this application note, different types of thermal sensor technology are described. In addition, KEMET thermal sensor construction, operation principle, and suitable applications are explained.

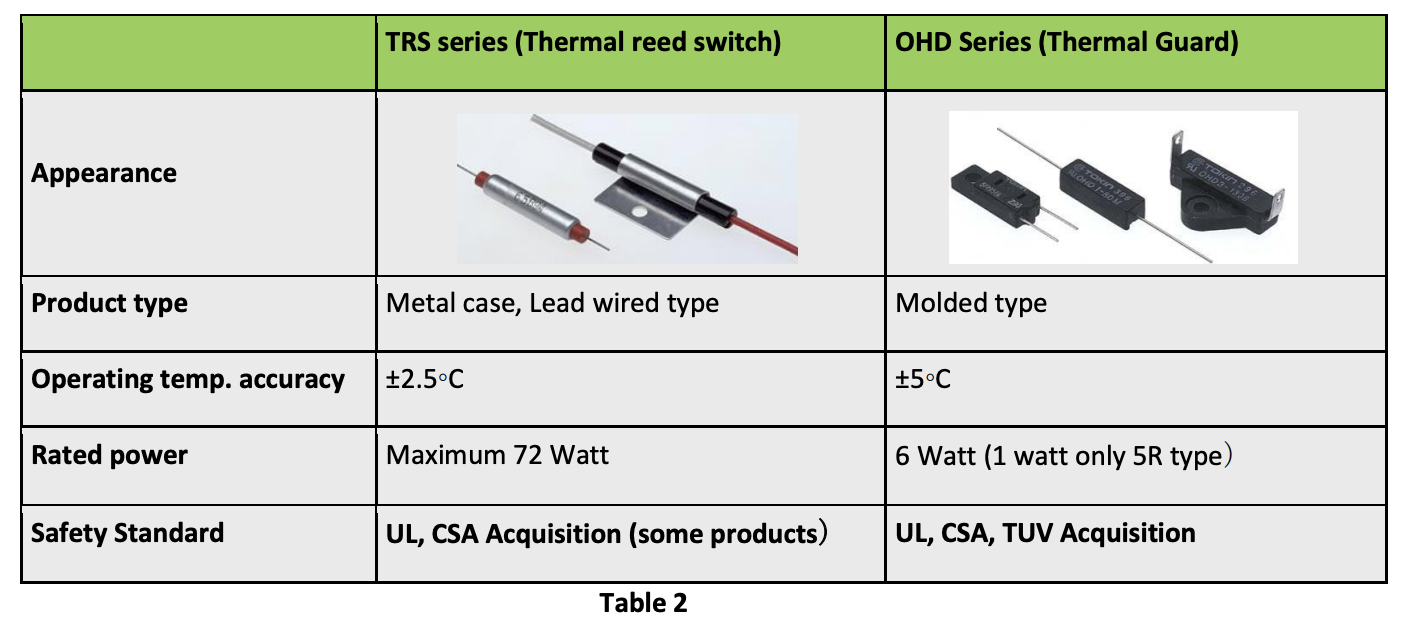

There are three thermal sensor types. (1) Thermo ferrite + Reed switch type (KEMET sensors), (2) Bimetal type thermal sensors, (3) Thermistors. Table 1 shows operation principles and functions of each sensor. KEMET offers TRS series and OHD series thermal sensor (Table 2).

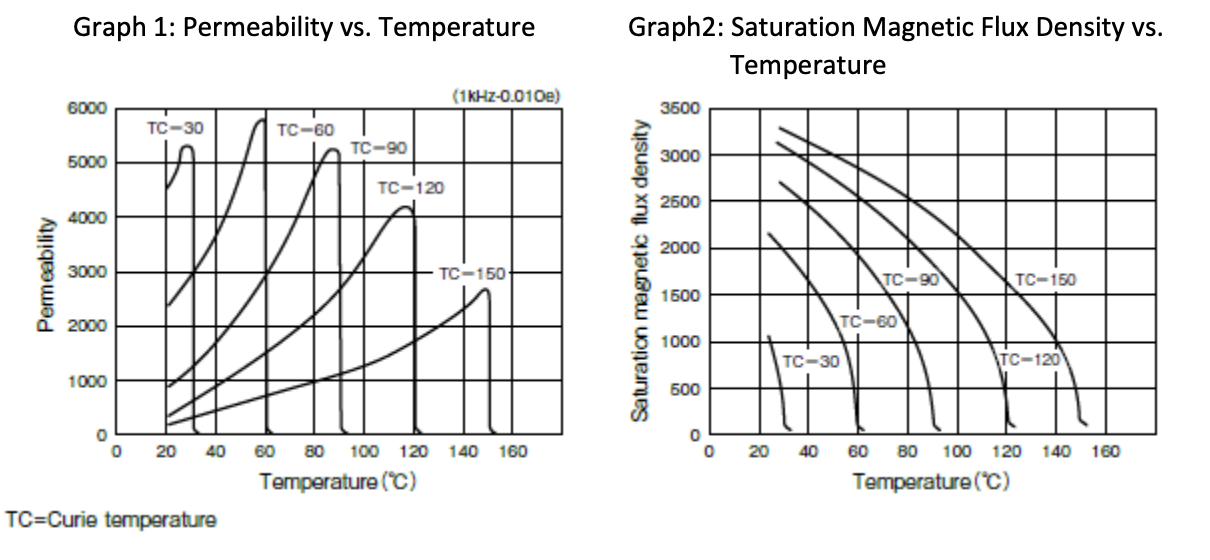

Temperature sensitive ferrite, Thermolite, is a ferromagnetic material that has soft magnetic characteristic under curie temperature. Material’s saturated magnetic flux density decreases as material temperature goes up, and it becomes paramagnetic (ferrite lose its magnetic property) rapidly when the temperature of the material reaches at curie temperature. Graph 1 and Graph 2 below show thermal property of Thermolite. Graph 1 shows that Thermolite rapidly lose its permeability at its curie temperature (TC), and Graph 2 shows that saturated magnetic flux density becomes close to zero at its curie temperature (TC). Curie temperature does not vary with time because it depends on compounding ratio of the material.
KEMET Thermal Sensor has two types, “Break type” (Figure 1) and “Make type” (Figure 4). Sensors consist with Thermolite, Reed switch, Permanent magnet and Gap/Space (for “Make” type sensor only). Reed switch opens or closes by temperature dependent Thermolite that converts thermal energy to magnetic field energy.

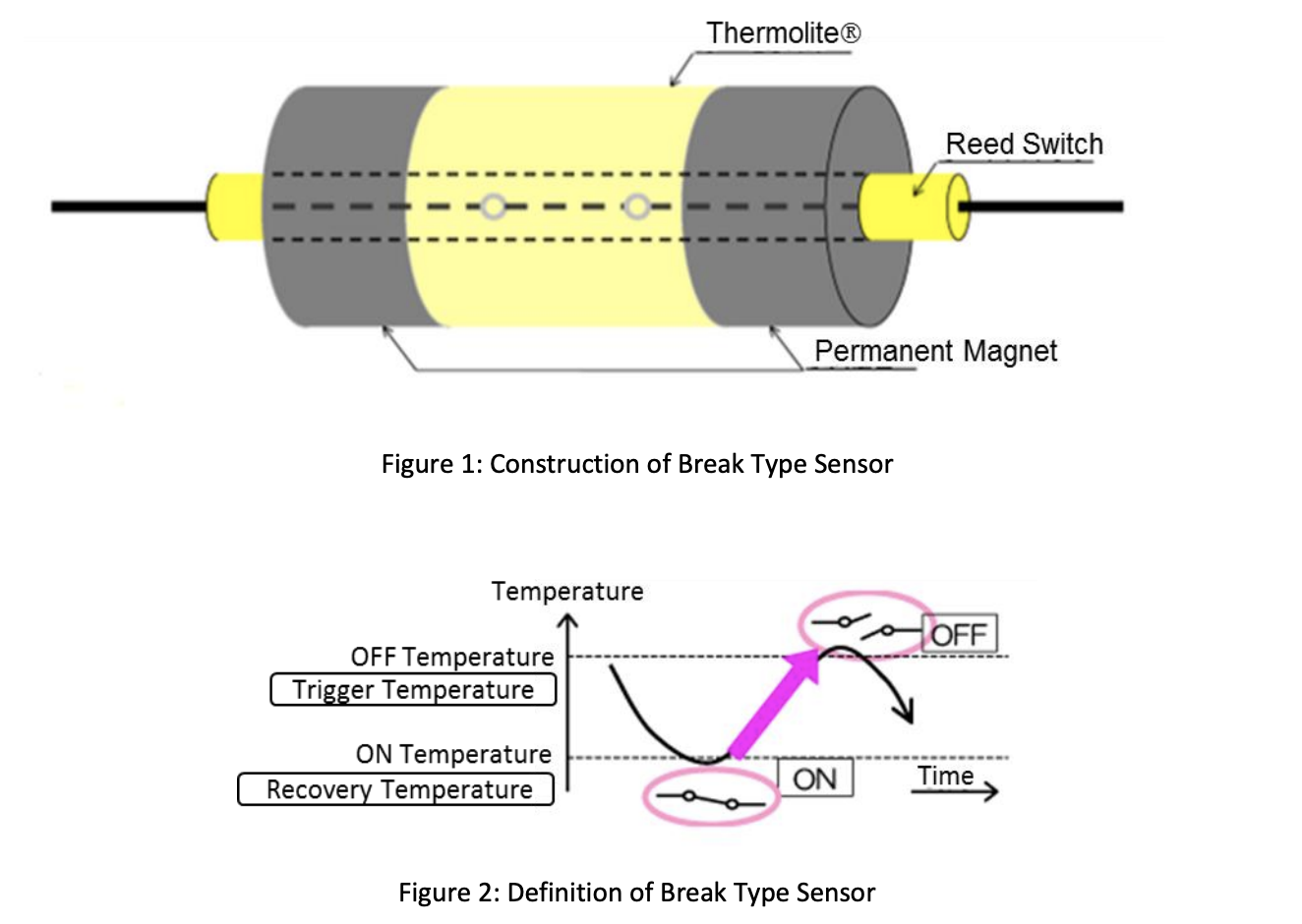

Break type is a normal close type sensor and consists with Thermolite, Reed switch and Permanent magnet as shown in Figure 1. The switch is ON (closed) when the operating temperature is lower than a trigger temperature and switch becomes OFF (switch is open) when the operating temperature reaches equal or higher than the trigger temperature.

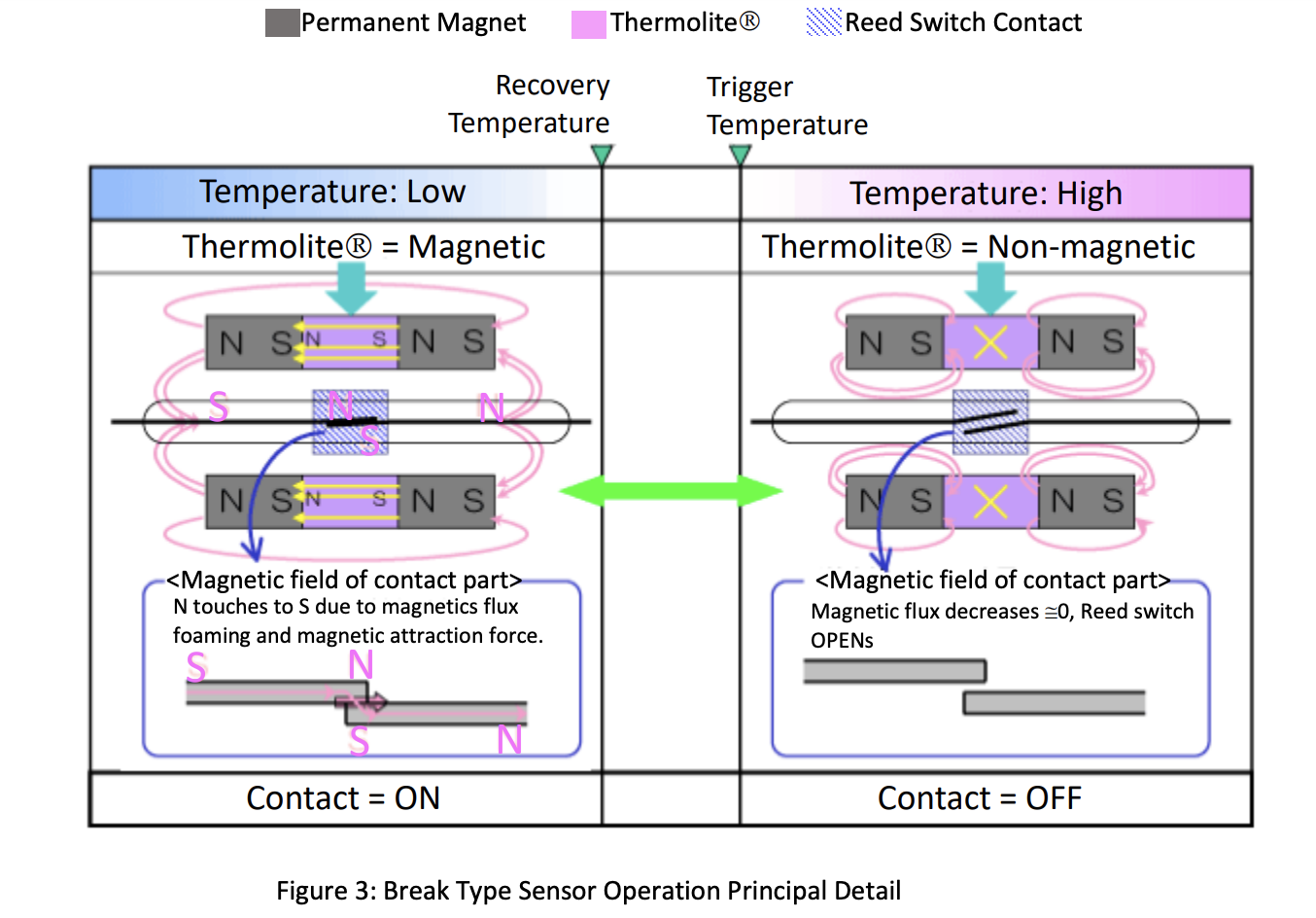

Thermolite is magnetic when the temperature is lower than the trigger temperature, and it generates annular magnetic field as in Figure 3. Reed switch is induced to N polarity and S polarity due to magnetic field, tips of the reed switch touch due to magnetic attraction force and the reed switch becomes ON. When temperature of Thermolite reaches to a trigger temperature (=Curie temperature), Thermolite loses magnetic flux and becomes non-magnetic. Tips of the reed switch become apart (OFF, open) due to non-magnetic state in Thermolite.

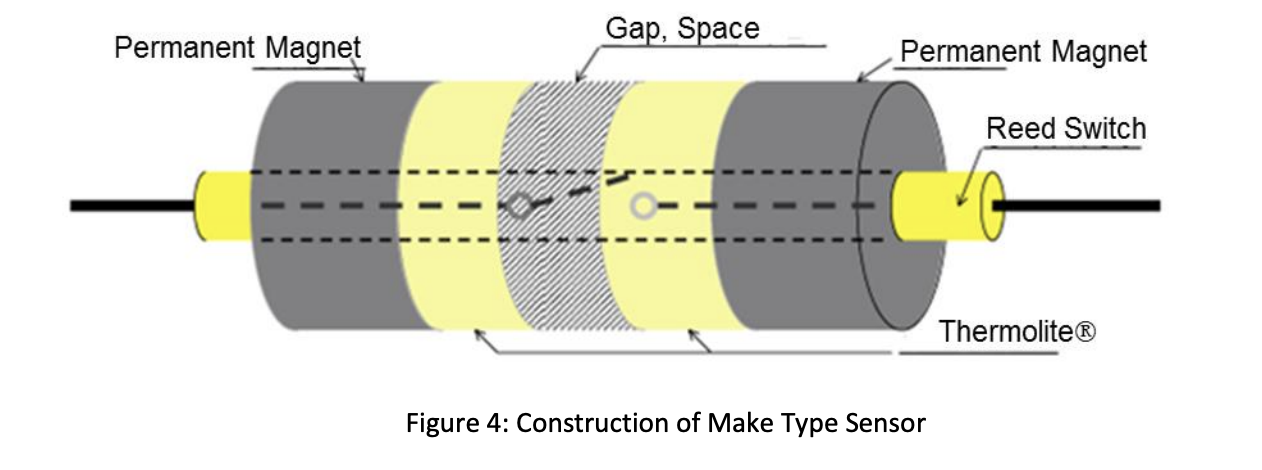

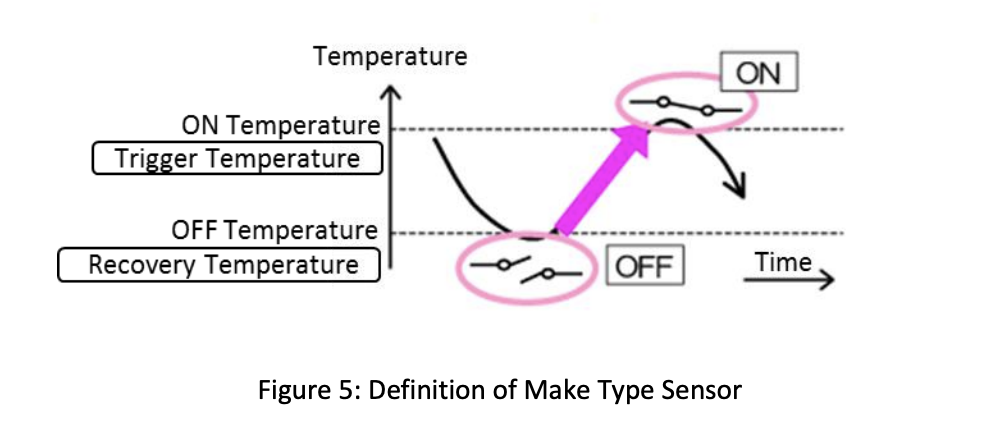

Make type is a normal open type and consists with Thermolite, Reed switch, Gap/Space and Permanent magnet as shown in Figure 4. It operates as OFF (switch is open) when the operating temperature is lower than a Trigger temperature, and the switch closes (switch is ON) when the operating temperature becomes higher than the Trigger temperature.

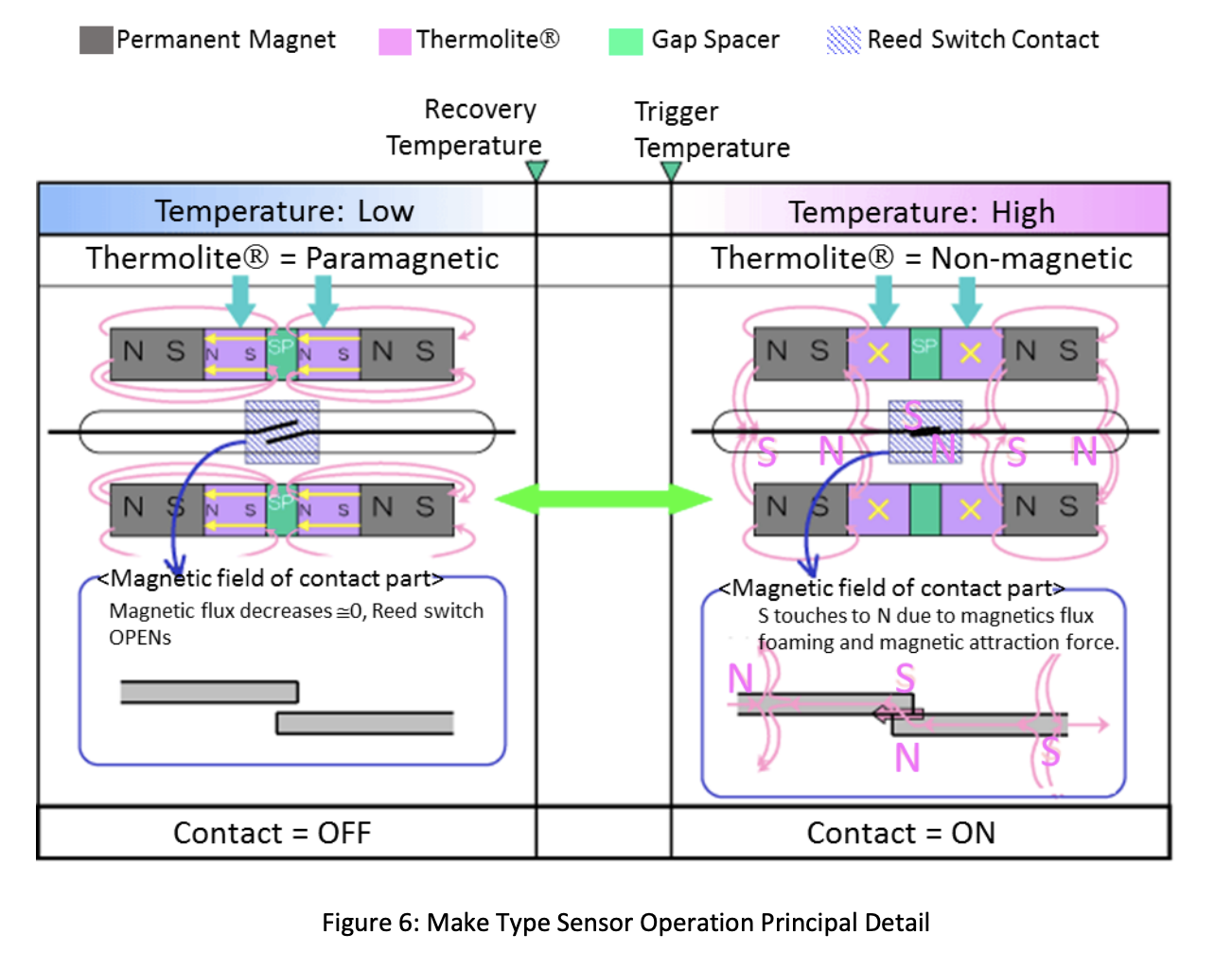

Make type sensor has a gap spacer in between Thermolite material as shown in Figure 6. When the temperature is below a trigger temperature, permanent magnet and Thermolite creates annular magnetic field and tips of the reed switch become apart (OFF). When Thermolite reaches its curie temperature (trigger temperature), Thermolite loses magnetic flux and becomes non-magnetic. Tips of the reed switch are induced to N polarity and S polarity. Tips of the reed switch touch due to magnetic attraction force, and the reed switch closes (ON)
Reed switch is a magnetic reaction type switch and consists with two Fe-Ni alloy small plates. It is placed into a glass tube with inactive gas inside. This allows the reed switch to reduce metal fatigue risk and to provide long life (500K times compared with 100k times on bimetal type sensor). This structure also allows dust resistance and moisture resistance.

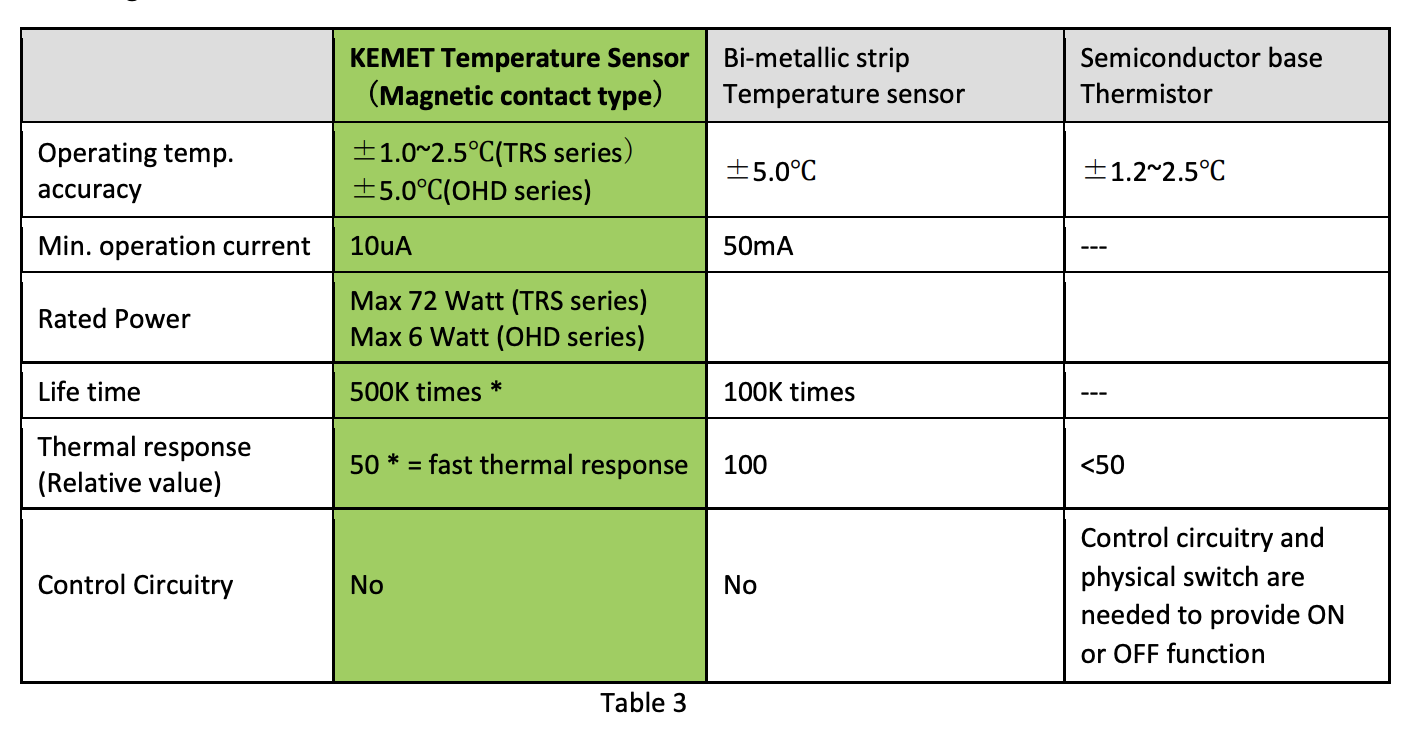

KEMET thermal sensor is an excellent simple switch to monitor threshold temperature such as overheating situation. There is no external control circuitry needed unlike thermistors, providing cost effective solution. It can provide high reliability because of how reed switch is enclosed reducing metal fatigue risk. Temperature accuracy compared with similar technology such as bimetal temperature sensor is excellent (±1~±5 degree C vs. ±5 degree C). Table 3 below show comparisons in between three technologies.
KEMET TRS and OHD series are used in many applications such as home appliance, OA equipment, power supply and other systems where monitoring critical temperature is required and where simple ON or OFF operation by a trigger temperature is needed. We will list several examples.

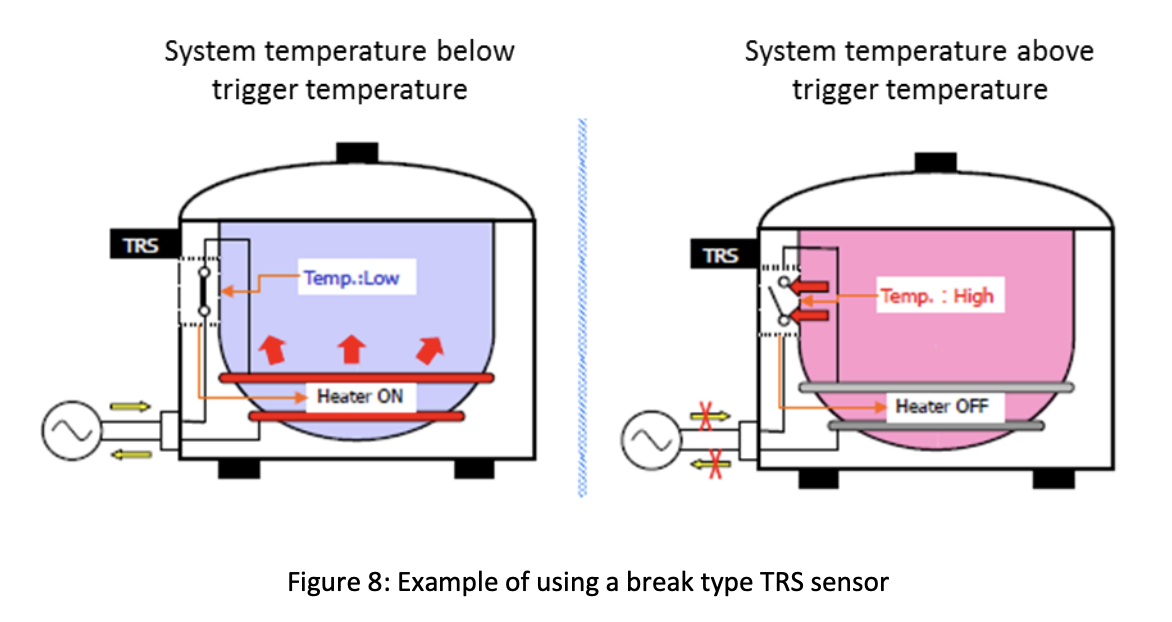

Figure 8 is an example of using a break type TRS series to control heater in a rice cooker or a crock pot application. The reed switch of the TRS sensor is normally closed below a trigger temperature providing power to the system to keep heater warm and ON. When the temperature of the system reaches at a trigger temperature, the TRS sensor lose its magnetic property and the reed switch OPENs to avoid excessive heating in the system. Similar concept is used for preheating of the drum in OA equipment to keep preheating temperature at 20C~30C.

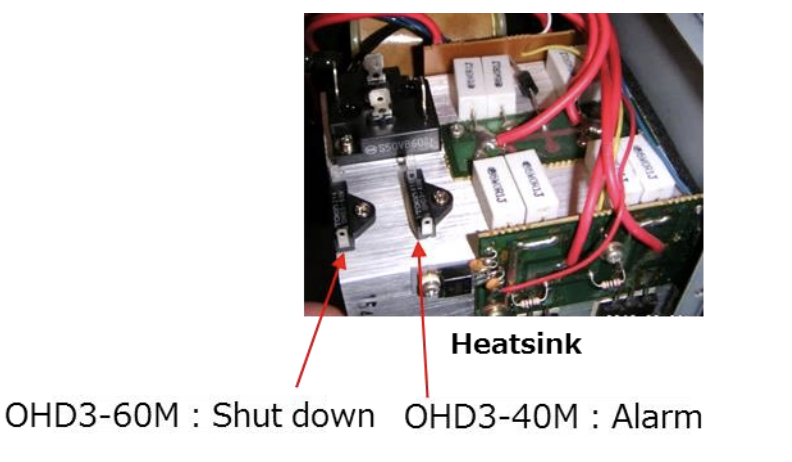

Another example is using a make type OHD series in power supply application for overheat monitoring. There are several international safety standards for power supplies, and they require to monitor hot temperature in between 60 degree C~100 degree C to avoid overheating of the system. In Figure 9, two make type OHD series are placed close to heatsink in a power supply. Under normal operation (under a trigger temperature), the OHD is open. When the power supply is overheated, the first sensor (OHD3-40M) detects that the temperature reaches 40 degree C and it sets off an alarm function in the power supply. When the second sensor (OHD3-60M) detects that the temperature reaches 60 degree C, the reed switch turns ON so that the voltage can be applied to OVP pin of the control IC and the power supply shuts down.
TRS and OHD series are also used in applications such as monitoring efficiency loss by monitoring temperature of the power IC (IGBT or Transistor), monitoring abnormal heat generation of the battery etc.
TRS series and OHD series are simple and reliable solutions to monitor critical temperature and they are cost effective thermal switches. They can be simply incorporated into the customer circuit without any external circuitry, operates ON and OFF at trigger temperature, providing output and letting the system know abnormal temperature is detected.
