T598D687M2R5ATE009

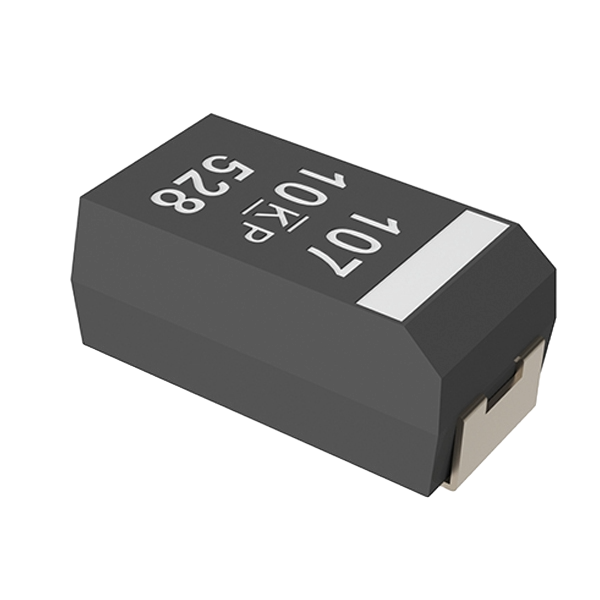

T598, Tantalum, Polymer Tantalum, 680 uF, 20%, 2.5 VDC, SMD, Polymer, Molded, Low ESR, AEC-Q200, 9 mOhms, 7343, Height Max = 3.1 mm, Lead Spacing = 1.3 mm

Typical Electrical Performance
The K-SIM Part Details Integration feature is intended to be used on desktop computers only. Please switch to a desktop device in order to use this feature.
Specifications

Specifications

General

Capacitance 680 uF
Tolerance 20%
Voltage DC 2.5 VDC
Temperature Range -55/+125°C
RoHS Yes
ESR 9 mOhms
Leakage Current 170 uA
Qualifications AEC-Q200
Footprint 7343
Height Max 3.1 mm
Lead Spacing 1.3 mm
Packaging T&R, 178mm
Packaging Quantity 500
