Capacitors for DC-Link Applications
Designed for DC power conversion performance in high power filter applications
Overview
DC-link capacitors act as an intermediary DC smoothing stage between AC stages. The intermediate DC step allows noise-reduced power transfer when converting between AC sources of different power, voltage, or frequency conditions. DC-link capacitors often experience high slew rates which can be detrimental if a suitably robust capacitor is not selected. DC-link capacitors are often found in power inverters, motor drives, and high-power charging circuits. Capacitor technologies are sometimes mixed in DC-link applications to target noise and transients that may need multiple stages of filtering.

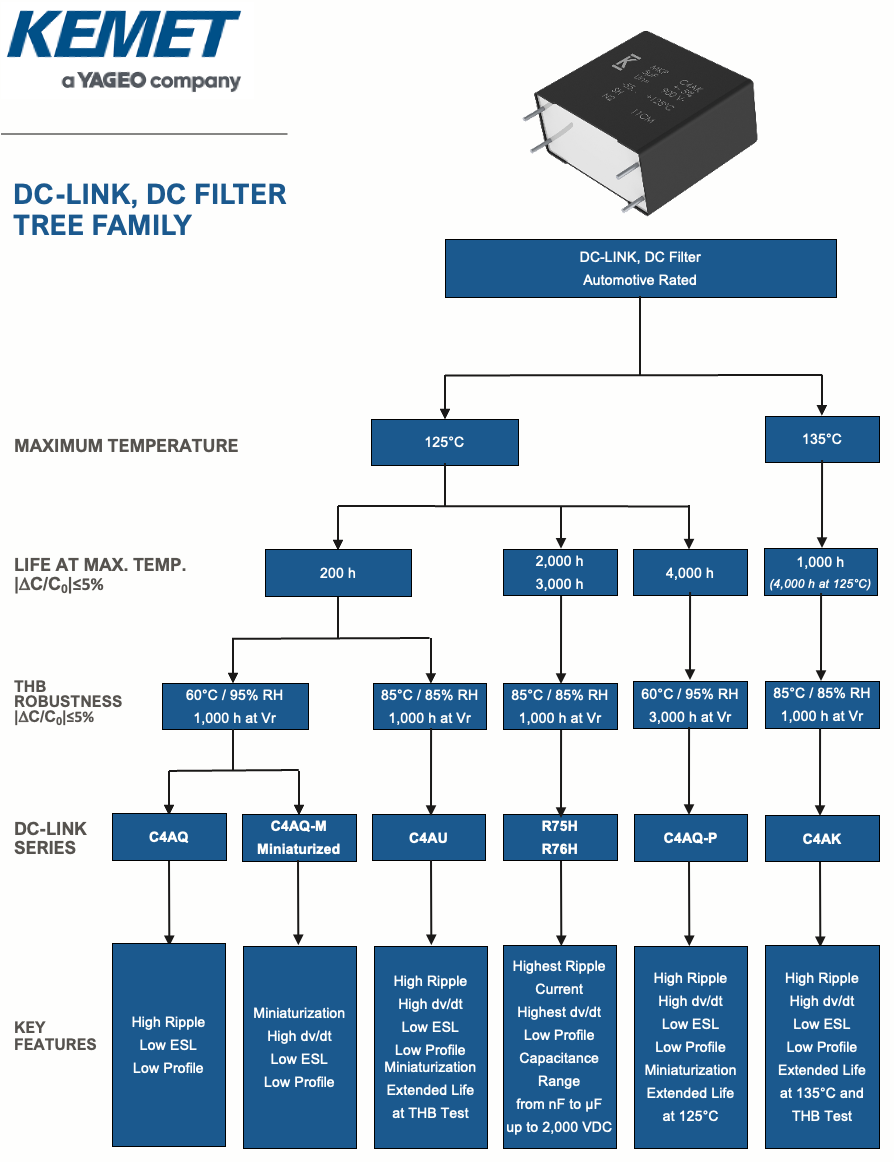

![](/content/dam/kemet/lightning/images/ec-content/2021/05/FilmDC-LinkFlowChart-1.png)

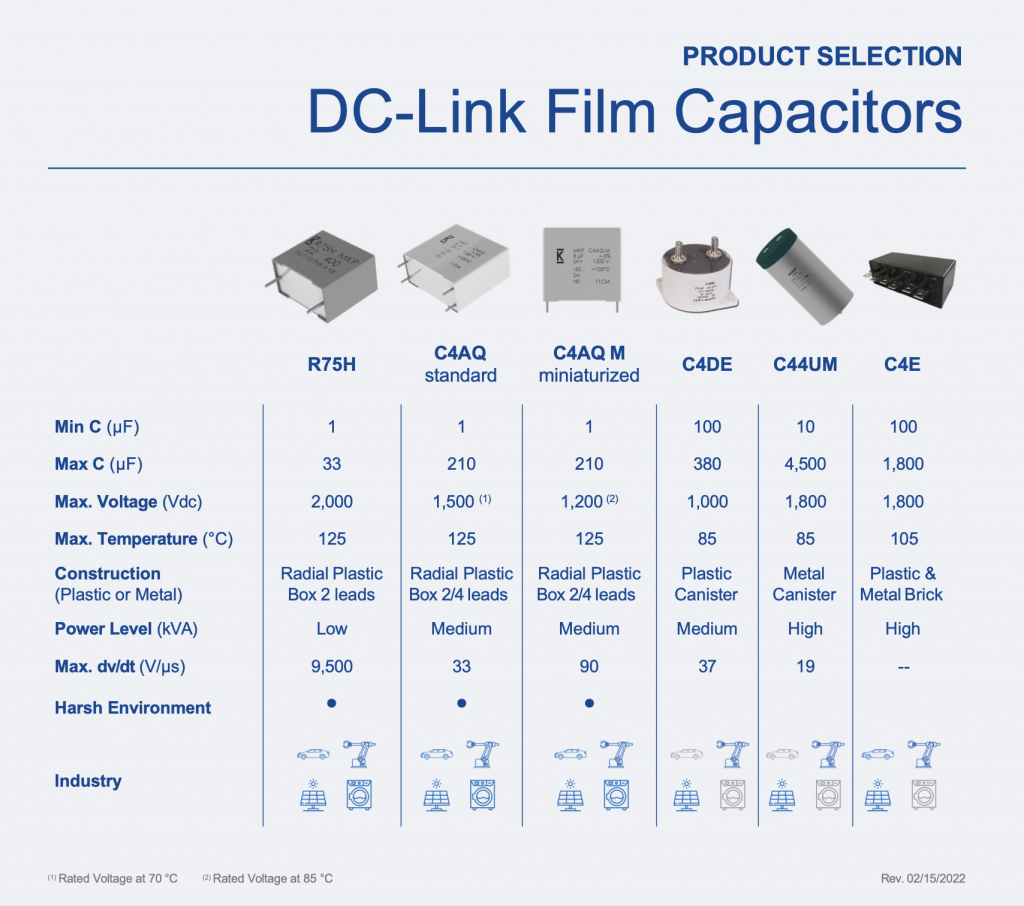

![](/content/dam/kemet/lightning/images/ec-content/DC-Link-Film-Capacitors-Product-Selection-1-1024x906.png)

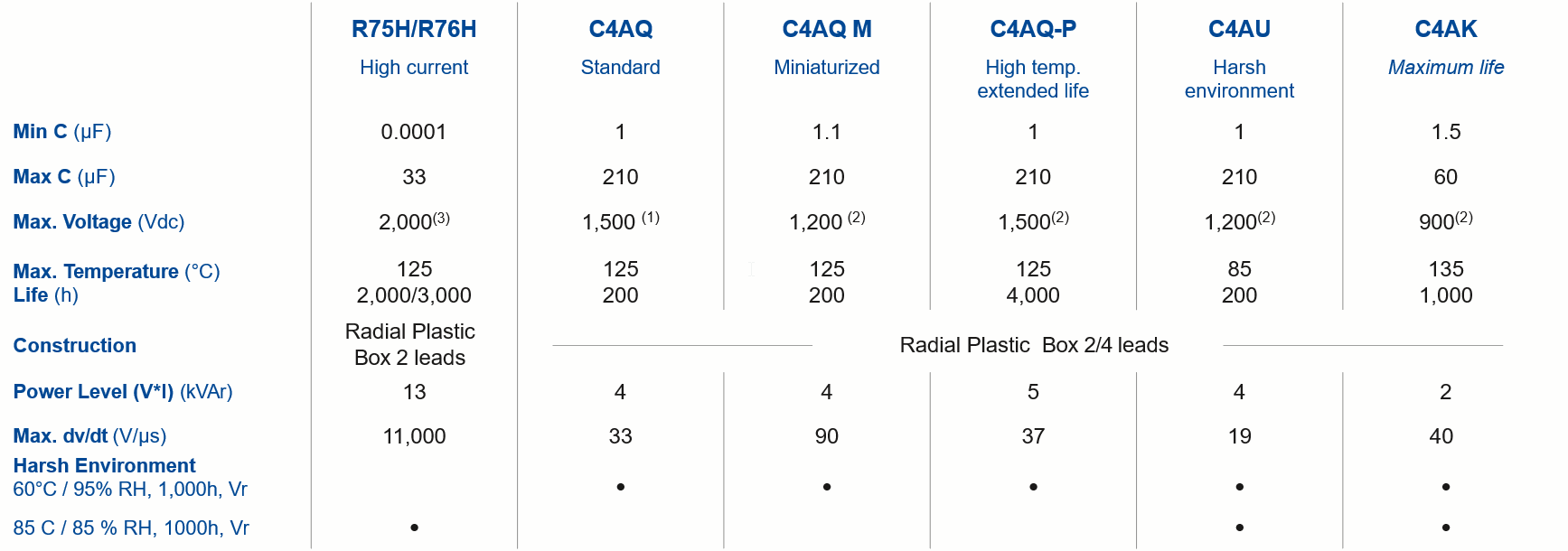

![](/content/dam/kemet/lightning/images/ec-content/2021/05/DClinklisting.png)

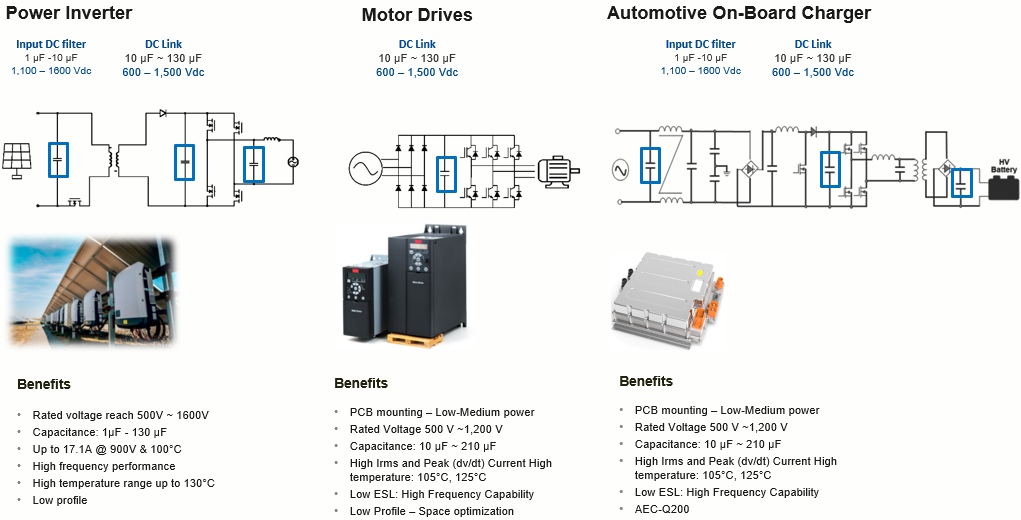

Automotive Applications Product Selection
![](/content/dam/kemet/lightning/images/ec-content/2021/05/FilmDCLinkApps-4.png)
